CarboFlow
CarboFlow is our lower cost, high-capacity, end-to-end carbonization machine that delivers increased environmental and financial returns across varied feedstocks.
Key Features
CarboFlow sets a new standard in carbonization technology, delivering unmatched value and performance for every project. Deploying several key innovations, it has been designed to maximize biochar production and increase automation to make sites more successful.
Affordable
Projects using CarboFlow achieve payback in half the time of other projects.
Versatile
CarboFlow is able to pyrolyze a broad range of feedstocks.
High-capacity
Throughput of up to 850 kg/hr, and easily scaled up or down.
How it works
Dried biomass feedstock enters the CarboFlow carbonization unit via a dual feed auger system. Rotary valves release measured quantities of the feedstock into the lower chamber. Here, in a high temperature, low-oxygen environment, the feedstock undergoes continuous pyrolysis and is transformed into biochar and syngas.
While the biochar is quenched and discharged into bunkers, the released syngas is passed into the upper chamber where it is combusted. The green energy from the hot flue gases is captured and can power heat applications or electricity generation through ORCs. The spent flue gases are then passed through a scrubbing system to ensure no harmful emissions are released into the atmosphere.

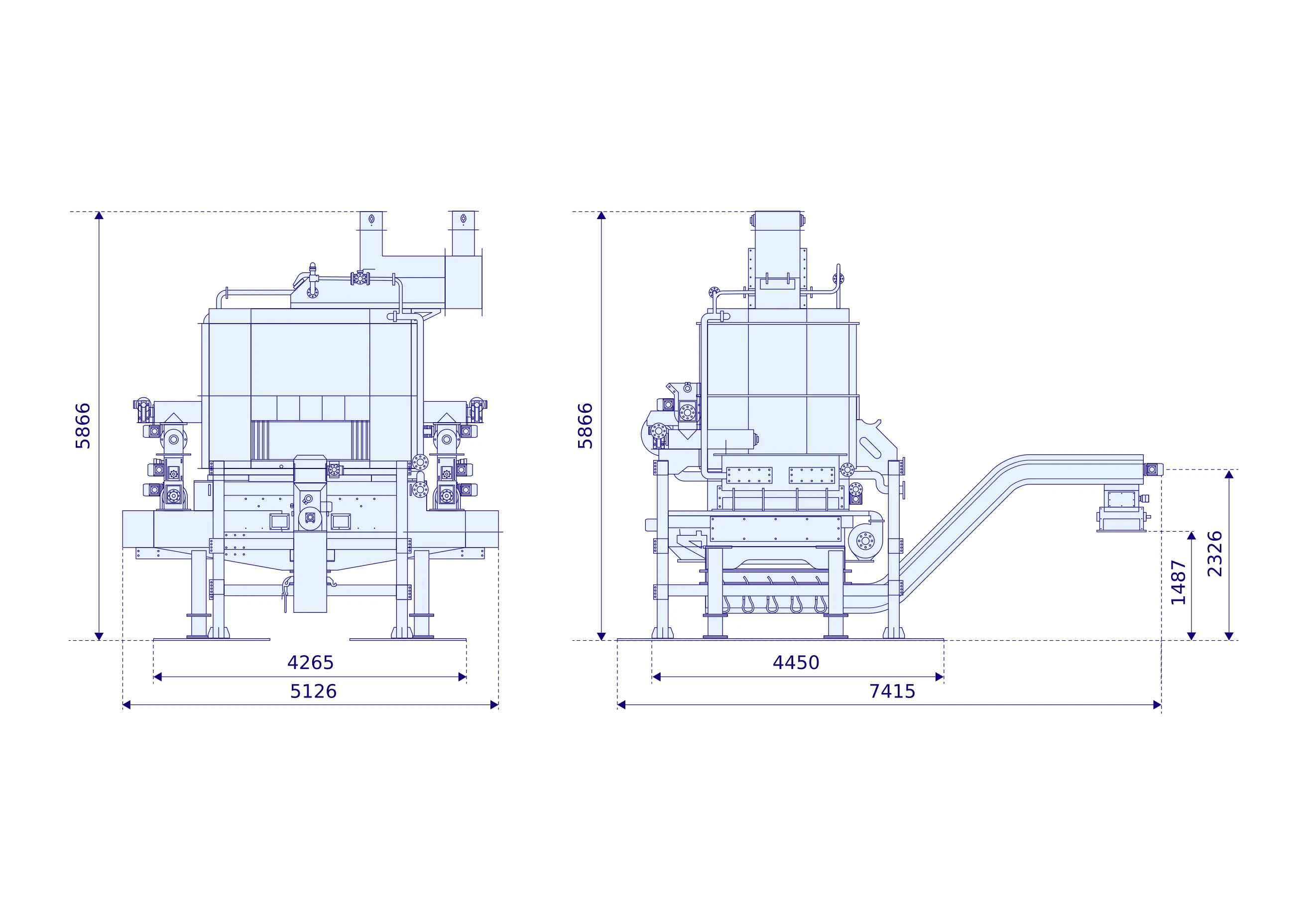

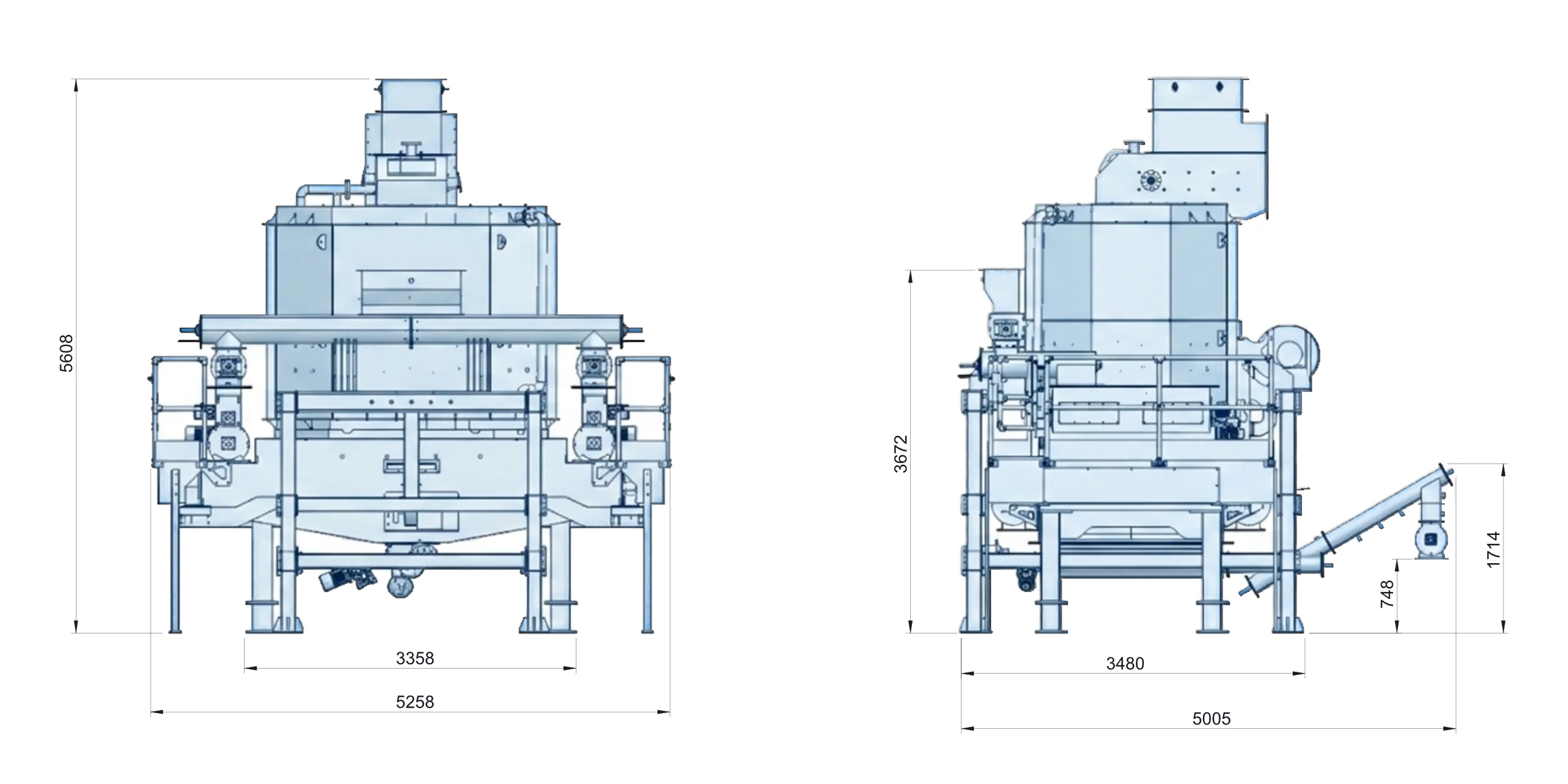

Key specs
Engineered for efficiency, designed for impact - CarboFlow delivers consistent performance for any scale of pyrolysis project.
Want to discuss your pyrolysis project?
Our team can advise on site layout, feedstock viability, and how CarboFlow can help you
achieve your commercial and sustainability goals.
CarboFlow's features
Automation
Intelligent core, user-friendly touchscreens, real-time remote access - our software takes pyrolysis automation to the next level.
Green energy capture
Turn heat and syngas into value with CarboFlow’s integrated energy recovery system, reducing waste and powering operations sustainably.
Feedstock drive
CarboFlow's 20 auger drive system delivers uniform pyrolysis across diverse feedstocks, boosting efficiency, quality and consistency.
MRV
Transform raw machine data into real-time intelligence and optimization insights, for verified, audit-ready carbon credit MRV reporting across every pyrolysis run.

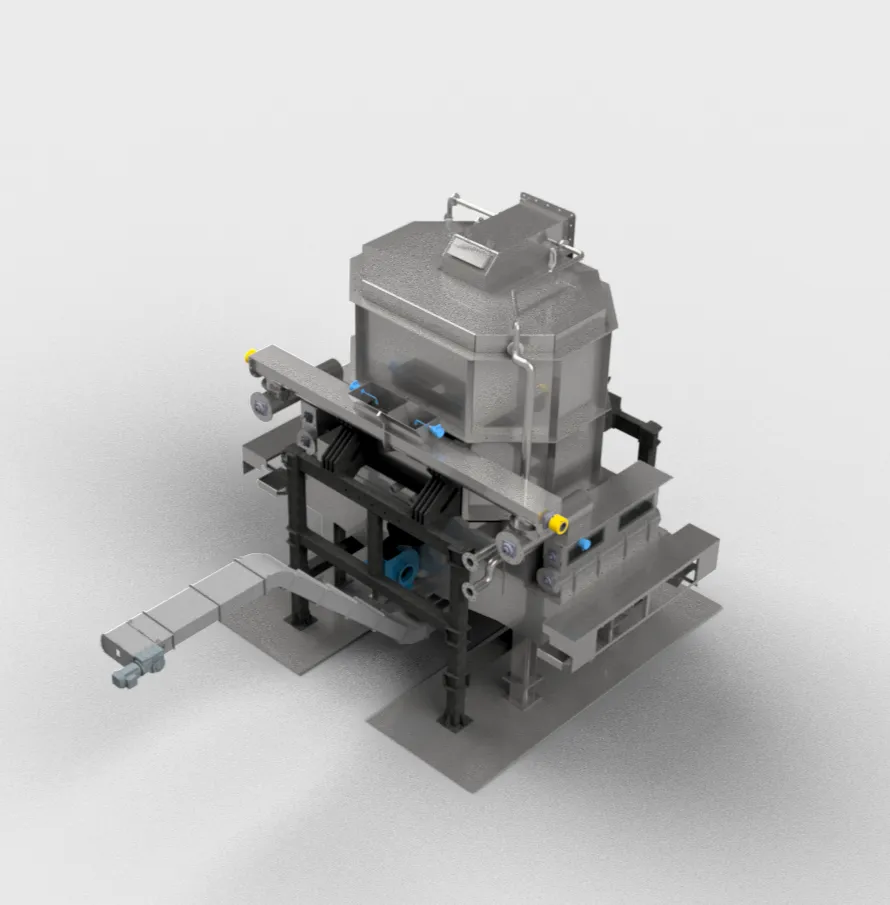

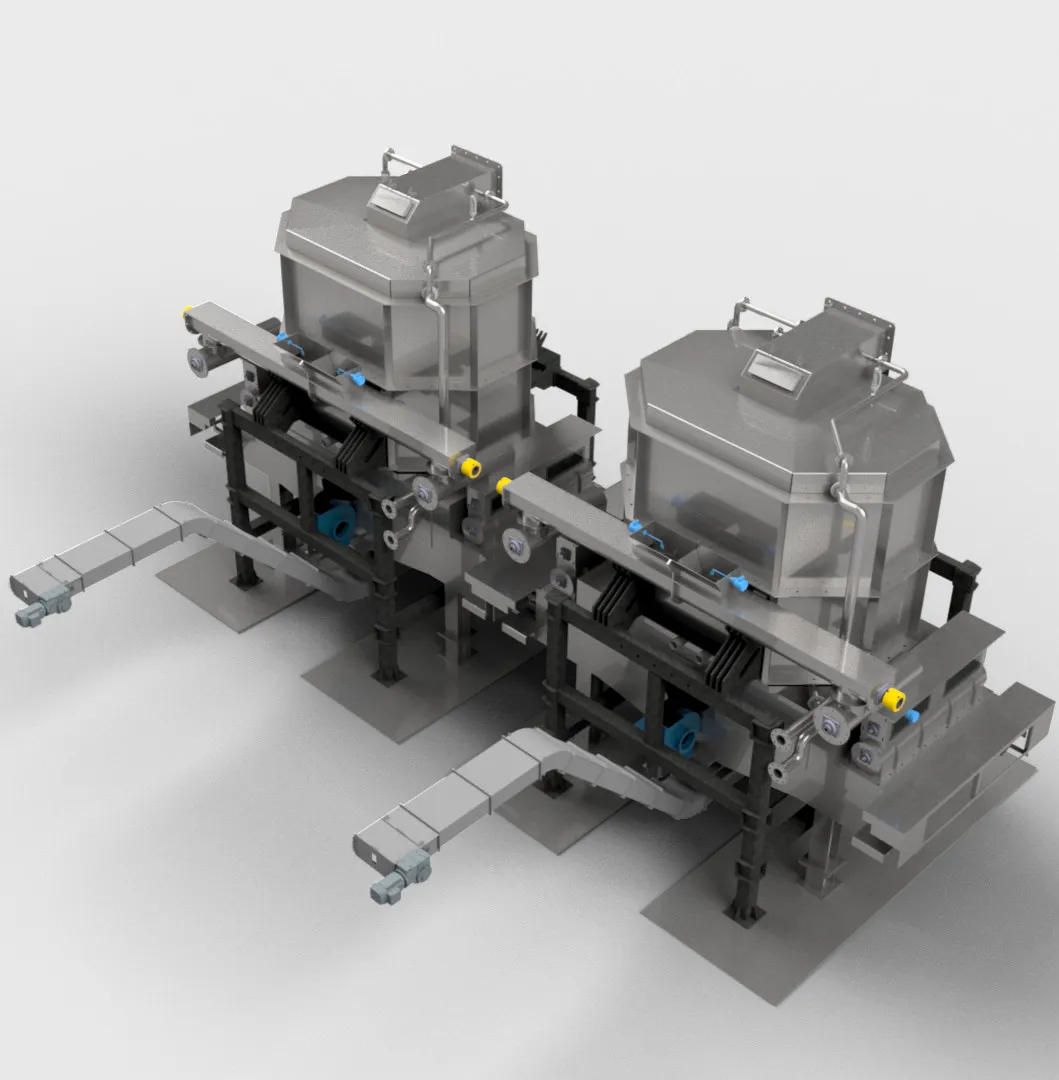

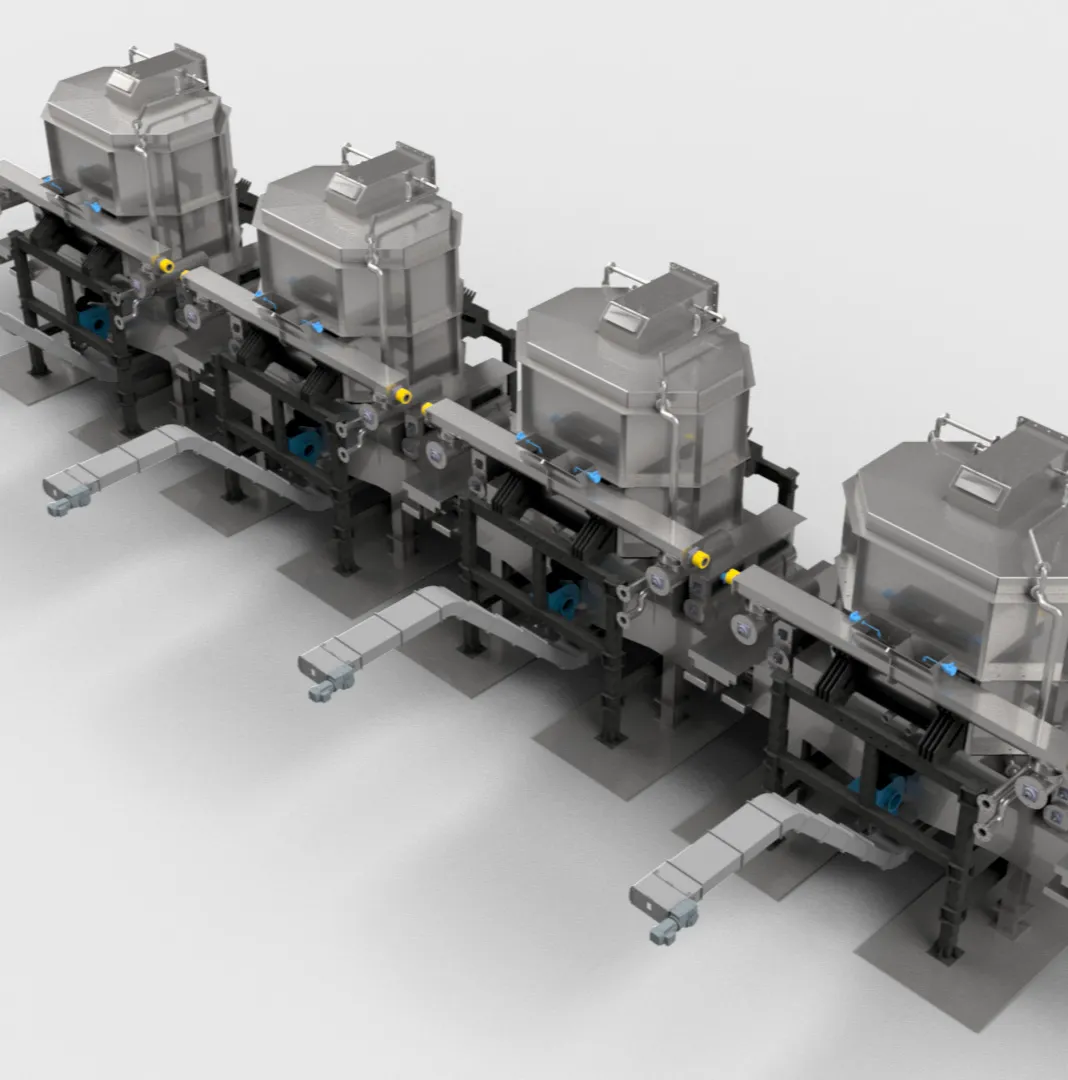

Minimize footprint, maximize throughput
Designed in a rectangular chamber with two side feeders, CarboFlow is modular with all components designed to fit into two standard containers. On-site assembly is straightforward, allowing for efficient delivery and commissioning, getting projects up and running sooner.

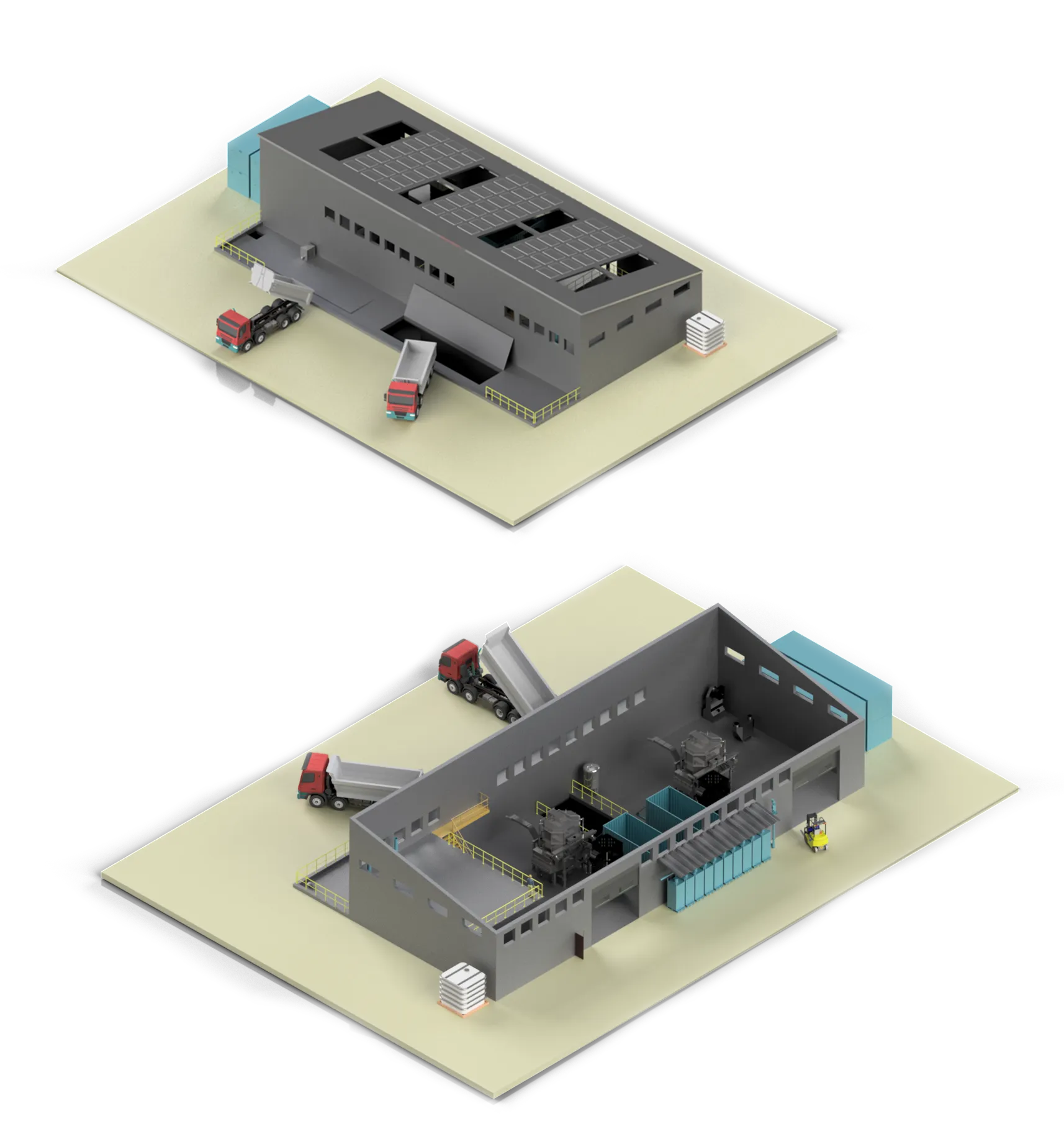

Whole plant solutions
Onnu can design and deliver the entire plant from feedstock in, to biochar out, adhering to the highest standards throughout.
This can include walking floors, conveyors, dryers, feed systems, heat exchangers, ORCs, scrubbers, cyclones and bagging systems as your project requires.
Extended Service Agreement
We have designed CarboFlow to ensure simplicity and practicality for clients to manage themselves. If you want to extend our involvement, beyond a standard warranty, our service package includes:
- All spares and fitting
- Pre-planned maintenance visits
- Remote monitoring
- Support hotline
- Performance guarantees
